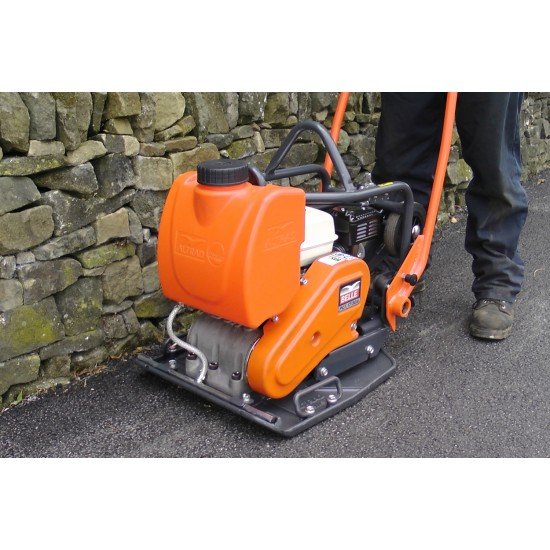

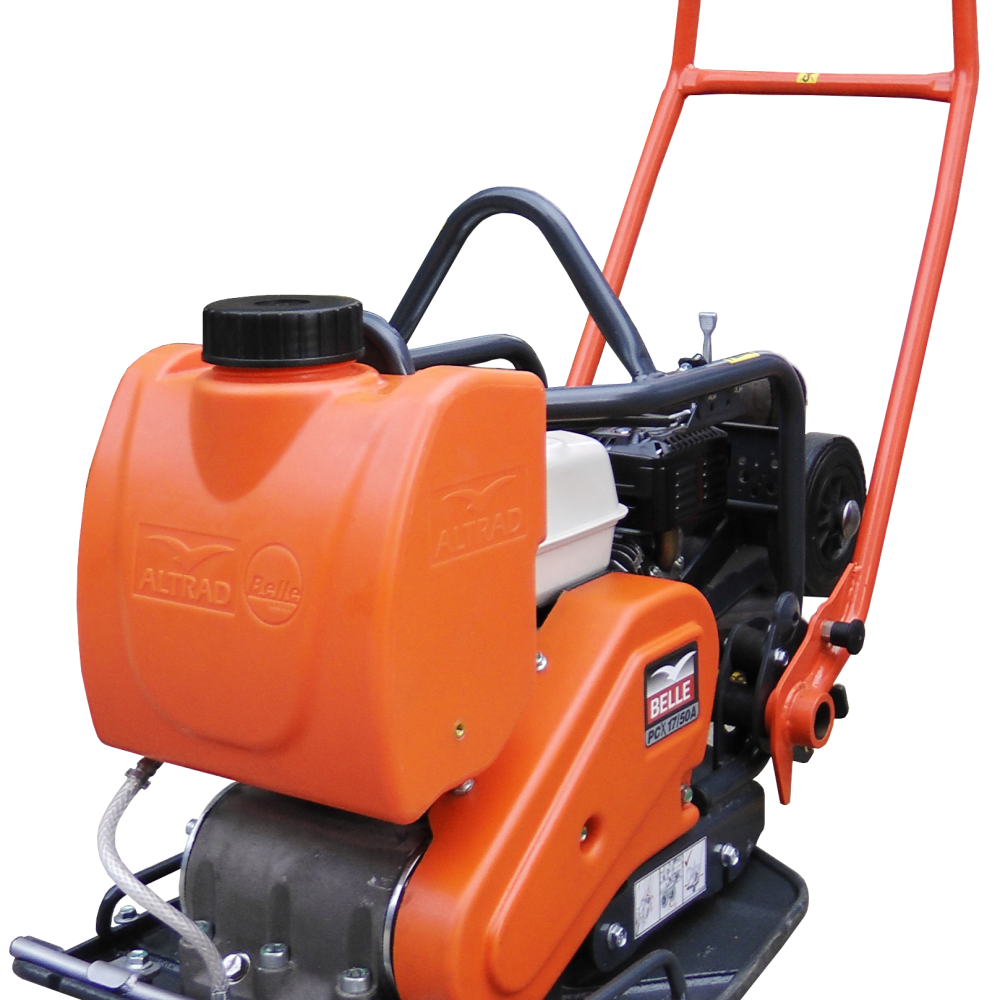

BELLE PLATE COMPACTOR PCX 17/50A PCA01 PETROL
A special single direction 'delta' plate designed ultimately for compaction of asphalt and macadam surfaces. This plate compactor features a special tapered base plate to help avoid track marks
- Extremely accurate with a small turning radius on Asphalt.
- Specially engineered 'Delta' style baseplate for high performance.
- Heavy Duty Remote Throttle.
- Strong protective frame as standard.
- Integrated Large 12-Litre Capacity Water Tank.
- Highly accurate water distribution from Spray Bar.
- Handle Latch for increased stability whilst operating the Wheel Kit.
- Integrated Quick-Engage Wheel Kit.
- Large diameter Wheels to aid transportation on rough terrain.
- Durable metallic Water Control Tap for high flow rate.
- Low HAV handles that still allow precision control.
- Fast travel speed.
Weight (kg) | 90 |
---|---|
Model | PCX 17/50A - Honda GX160 |
Frequency (hz) | 85 |
Centrifugal Force (kN) | 15 |
Static Pressure (kg/m²) | 485 |
Part Number | PCA50 |
Vibration Level (m/sec²) | *2.7 |
Engine Power (Hp) - (kW) | 4.9 - 3.6 |
Max. Travel Speed (m/min) | 24 |
Dimensions (W x L x H mm) | 500 x 960 x 975 |
